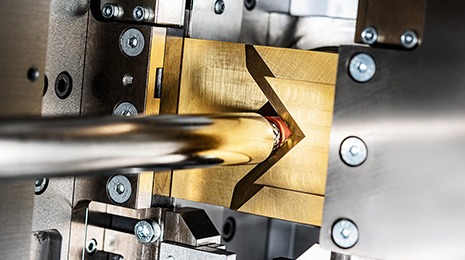

The Komax Kappa 350 is a power pack machine that uses the double-blade principle to process round conductors up to 120 mm² and a maximum outer diameter of 35 mm. It has either a belt drive or various drive rollers available for wire transport. A switchable pressure unit adjusts the contact pressure of the drive unit to suit the processing step. Sophisticated sensor technology ensures that cut losses are eliminated. These are of particular consequence in the upper cross-section range.
The powerful belt drive guarantees careful processing across the full cross-section range. The sensors are also combined with a length measurement encoder to provide optimal process monitoring and accuracy. Precuts are automatically minimized.
For automatic conductor detection, a sensor using an inductive measuring principle automatically determines the conductor diameter. This shortens setup and changeover times considerably and reduces operator errors. An optical measurement principle using lasers and CCD lines determines the outer diameters of the wires and also checks that the wire is present during processing.

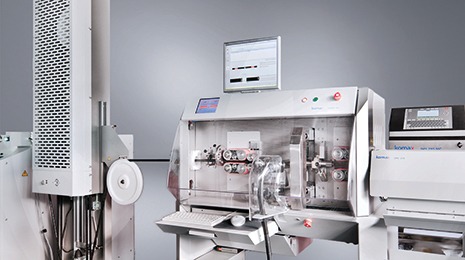

Integration of wire feeder systems, printers, active deposit units, etc., is standardized and easy. Particular attention has beenpaid to the integration and control of the inkjet systems. Data backup, software updates and the import of CSV wire and product data are all carried out via a USB stick.
The intuitive “TopTouch” touchscreen operating software is based on the proven Top-Win structure used on fully automatic crimping machines. The integrated user guidance makes all Kappas extremely easy to operate. TopWin Kappa enhances the capabilities and functionality of Kappa automatic cutting and stripping machines. The PC-based control software allows inkjet printing, sequence production or part list processing. The products to be produced can either be loaded onto the processing machine directly or via a jobs list. The optional WPCS (Wire Processing Communication Standard) interface enables the networking of Komax machines and their easy integration into existing production processes. The software used on the Kappa 350 also allows the centralized creation and management of parts, articles and orders in order to optimize production. Existing order and article lists can be converted into WPCS format using TopConvert. This data can then be processed directly by the cutting and stripping machine.
| Wire cross-section, stranded wires* | 2.5 – 120 mm2 AWG14 – 5/0 |
| Max. outside diameter | 35 mm (1.38 in.) |
| Max. outer diameter | 16 mm (0.63 in) |
| Length accuracy repeatability | Repeat accuracy ±(0.2%+1 mm (0.04 in.)) |
| Flat wire processing | – |
| Wire length range | 1 mm – 800000mm (0.039 in. – 874.9 yd.) |
| Max. wire transport speed | 4.8 m/s (189 in./s) |
| Max. stripping lengths | Full strip Side 1: 290 mm (11.42 in.) Side 2: 150 mm (5.9 in.) Partial/Semi strip-off Side 1: 999.9 mm (39.37 in) Side 2: 999.9 mm (39.37 in) |
| Programmable intermediate strip, number and length | programmable (No limitations in terms of number and length) |
| Automatic conductor detector (automatic detection of cut depth) |
Standard |
| Cable detector (queue, end and slip monitoring, zero-cut optimization, outer diameter measurement) |
Standard |
| Number of blade positions | 2 blade positions (+1 slitting blade) |
| Wire end detection | – |
| Length measuring system | Standard |
| Straightener unit | Optional (external) |
| IOCS interface (expandable) | 3 (6) |
| USB/standard ethernet | Standard |
| Noise level | <70 dBA |
| Drive system | Belt or roller drive |
| Production table | Standard |
| Electrical connection | 110/230 VAC ±10% 50/60 Hz 1.2 kVA |
| Pneumatic connection | 5 – 8 bar (73 – 116 psi) |
| Dimensions (W×H×D) | 1090 × 1425 × 890 mm (42.9 × 56.1 × 35 in.) |
| Weight | approx. 270 kg (595.2 lb) |
* Kappa machines can process many conductors outside the indicated cross-section range, but certain extremely hard, tough wires may not be able to be processed, even if they are within the indicated cross- but, we are happy to provide you with samples of your wires.
