KRI 450/850

The wire ring coilers from our partner ramatech are powerful and flexible peripheral devices. Wires and flexible conductors up to a diameter of 35 mm can be processed with the ring coiler devices. The parameters can be quickly and easily programmed on an LCD operating panel. The fully automatic ring coilers are equipped with interfaces to various automatic wire processing machines and are therefore ideally suited as additional equipment and as an uncomplicated expansion to a complete processing line.

The KRI 450 C / CB / CBP, and KRI 850 C / CB / CBP models offer the right solution for every requirement. The ring coilers all ensure fast and efficient coiling. An additional manual binding station is integrated in the CB models. The CBP models, on the other hand, are fully automatic coiling and binding machines. The coil diameters are flexible: Thus, wire coil inner diameters of min. 120 mm (KRI 450) or 250 mm (KRI 850) and max. 600 mm (KRI 850) can be processed on the machines.

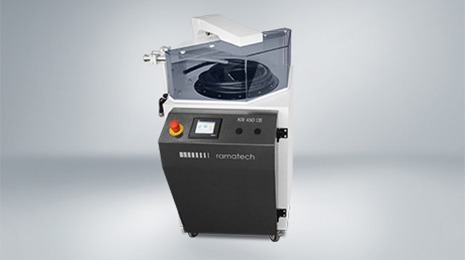

• The wire is fed directly from the automatic cutting machine, e.g. Komax Kappa, into a guide tube to the ring coiler.
• The coiling mandrels pick up the wire and rotate it into a regularly shaped wire coil.
• Once the wire has been fully coiled up, the coiling mandrels lower and the cover automatically opens.
• Heavy wire coils can easily be pushed flat over a table.

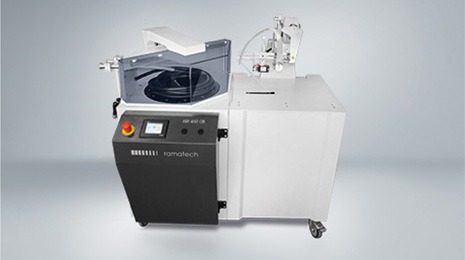

• Corresponds exactly to the coiling system described above, but with an integrated manual binding device.
• The wire coil is moved laterally from the coiler at the same height and is guided flush by hand into the binding device. There, the coil is tied with an elastic rubber cord.

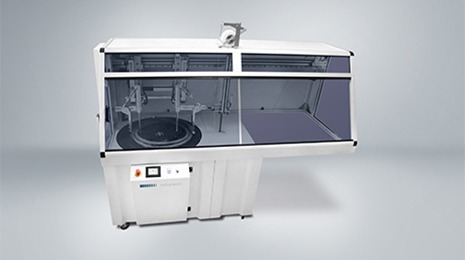

• This device is a fully automatic coiling and binding machine.
• Two fixing units with rod-shaped grippers transport the wire coil to the binding station and then to the deposit position.
• The coil is automatically ejected on the right after double binding.
