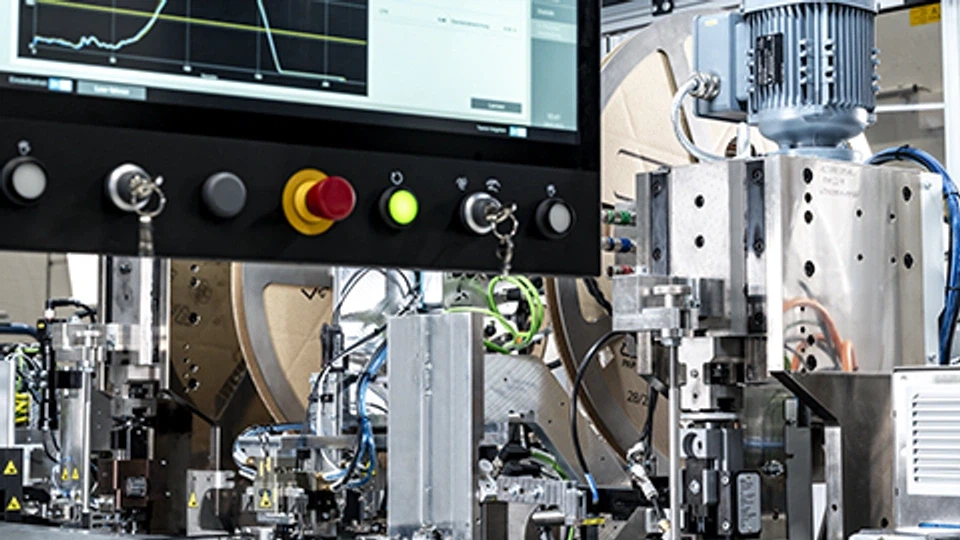

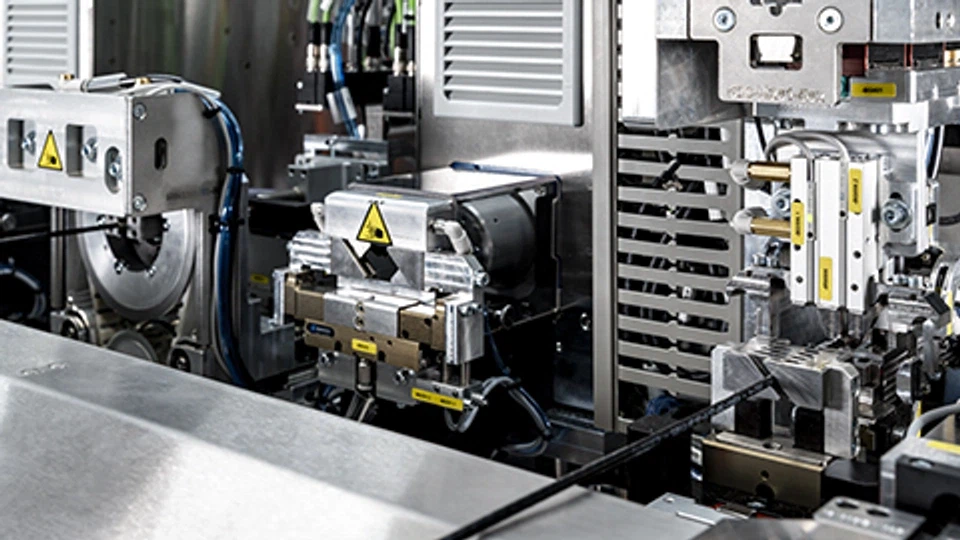

The Lambda 4 series is a modular machine base for fully automatic assembly of multi-step contact systems with manual insertion and deposit.
Lambda 4 Series
Finance available on this product subject to credit approval
Transparent and networked
Statistical evaluation of ongoing production is possible at any time, both directly on the plant and using Komax Connect, in order to control the production control center.
Easy and quick changeover for other recipes
Thanks to integrated recipe management and up to 15 process stations, the plant can be refitted for other recipes within a very short time without great effort.
Less training required
Due to the large number of modules with standardized hardware and software on different plants, little training is required.
| Approximate energy consumption with 3’500’000 wires | 49’500 kWh |
| Cable length (uncoiled) | 1300mm |
| Wire length coiled max. | 15000mm |
| Wire outer diameter max. | 6mm |
| Shortest wire length for one-sided processing | 165mm |
| Electrical connection | 3 × 400VAC±10%, 50/60Hz |
| Current | 20A, typeD |
| Compressed-air connection | 7-10 bar |
| Weight | ca. 1700 kg |
| Width | 3000mm |
| Length | 1400mm |
| Noise level | ≤ 78 dBA |
| Ambient temperature min. | 15°C |
| Ambient temperature max. | 40°C |
| Cycle time | >8 sec |
| Connector systems | Coax, mini Coax, Automotive Ethernet UTP, and STP |
| Maximum yearly output | 1200000 |
| Transfer system | Belt drive with handovers |
| Processing outside the specifications | Processing outside the specifications upon request. |
