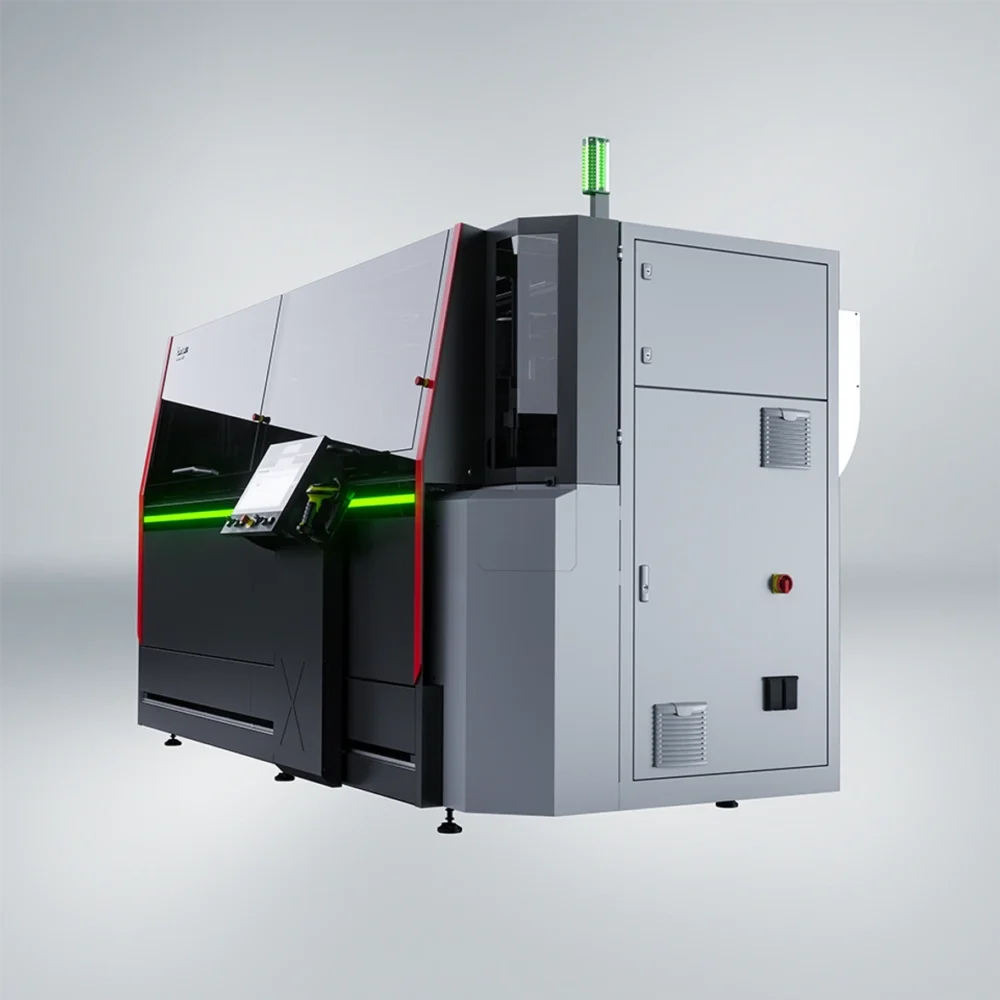

The Lambda 5 platform is a modular machine base for the fully automatic assembly of multi-step contact systems.
Lambda 5 Series
Finance available on this product subject to credit approval

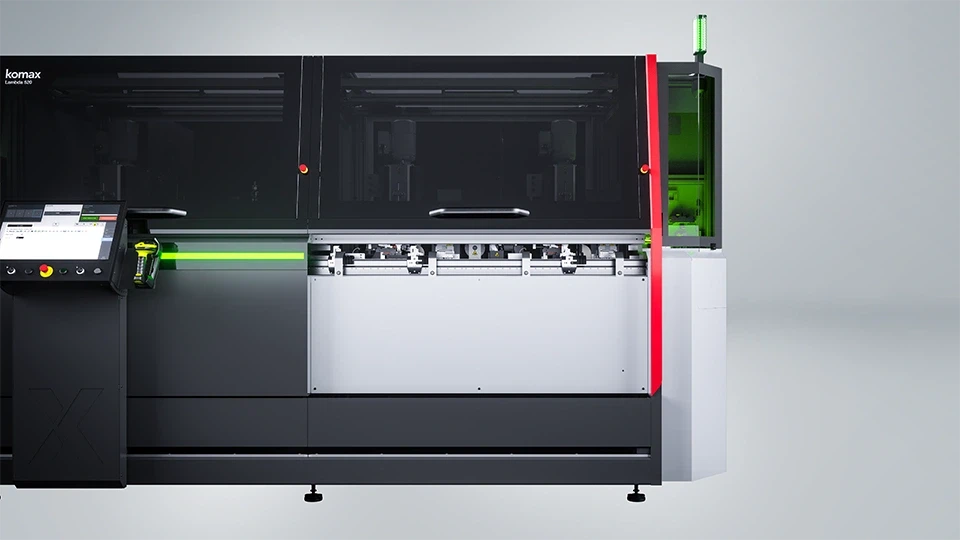

Maximum Productivity with the Innovative Transfer System

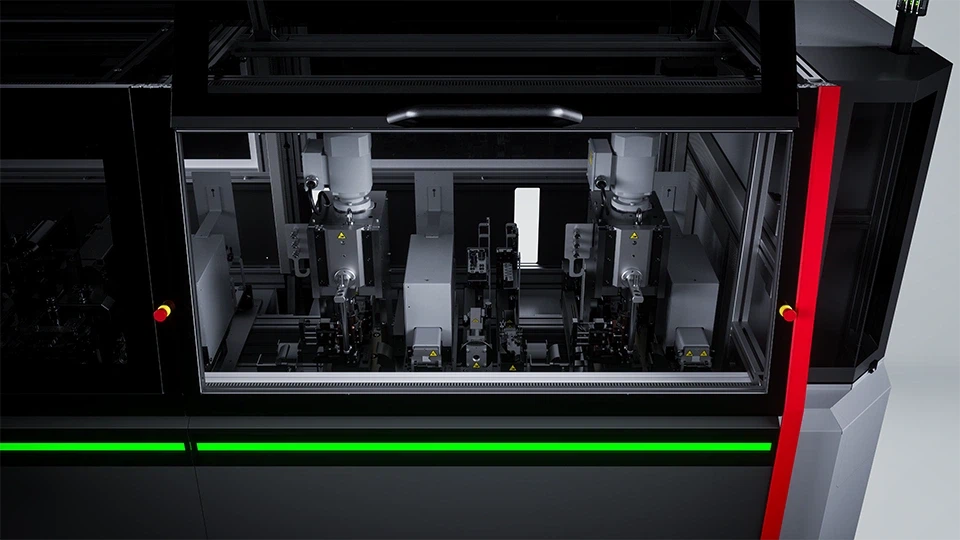

Freely movable workpiece carriers minimize the amount of production space required and the cycle times, since the modules can be arranged in a row without unnecessary free space.
Maximum Efficiency in Output and Consumption
Short cycle times enable outstanding and repeatable assembly quality with low production costs per cable.
Sophisticated Design

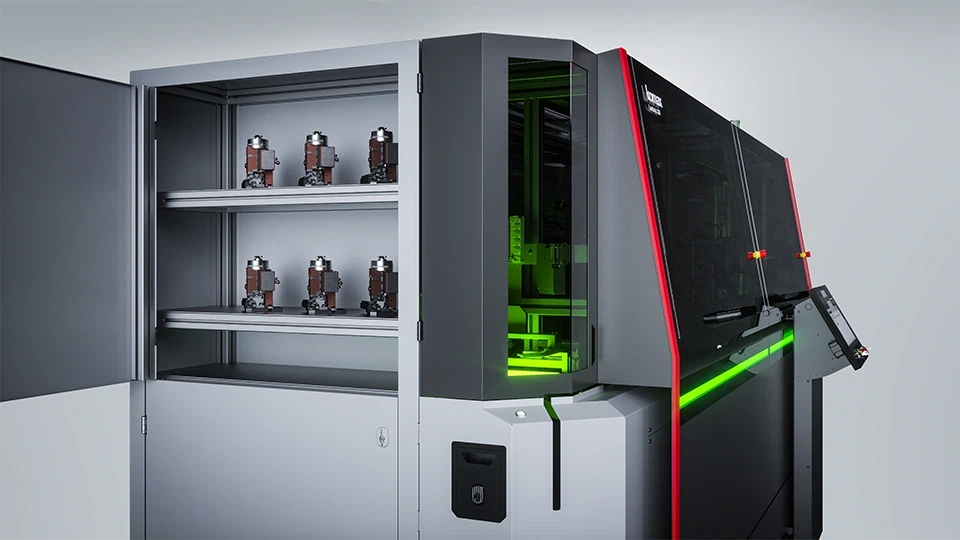

A built-in storage solution for tooling sets and applicators, as well as simple and configurable jobs, enable the system to be converted quickly.
Secure Investment

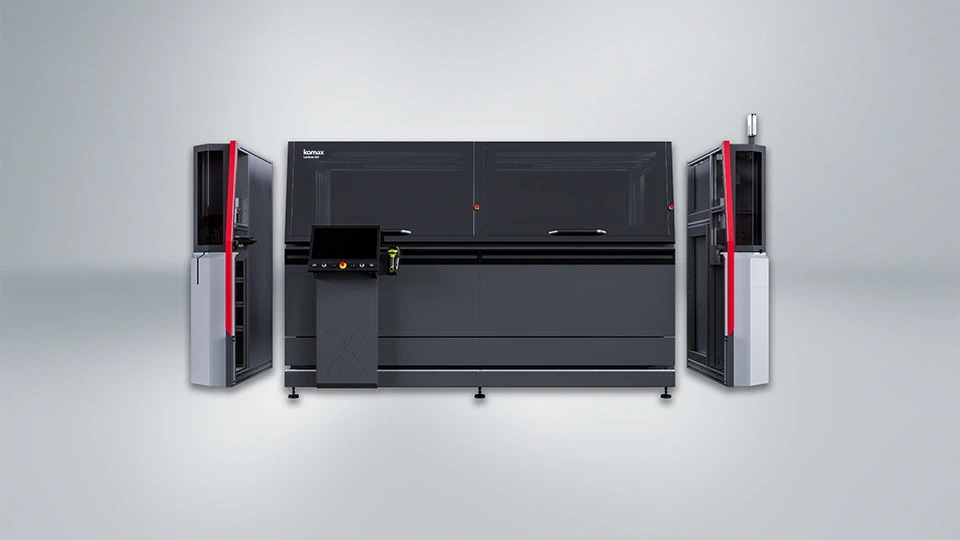

The Lambda 5 can be quickly and easily converted by replacing a module or upgraded to a highly automated Lambda X by converting it.
| Approximate energy consumption with 3’500’000 wires | 18000 kWh |
| Cable length (uncoiled) | 1300mm |
| Wire length coiled max. | 15000mm |
| Wire outer diameter max. | 6mm |
| Shortest wire length for one-sided processing | 130mm |
| Electrical connection | 3 × 400VAC±10%, 50/60Hz |
| Current | 32A, typeD |
| Compressed-air connection | 7-10 bar |
| Air consumption | ~135 l/min |
| Weight | ca. 2200 kg |
| Width | 3890mm |
| Length | 2750mm |
| Height (with tower light) | 2300 mm |
| Noise level | ≤ 80 dBA |
| Ambient temperature min. | 15°C |
| Ambient temperature max. | 40°C |
| Cycle time | >4.5 sec |
| Connector systems | Coax, mini Coax, Automotive Ethernet UTP, and STP |
| Maximum yearly output | 2150000 |
| Transfer system | linear Magnetic Transfer |
| Processing outside the specifications | Processing outside the specifications upon request. |
