Cable processing at the highest level. With crimp force monitoring, network-compatible and controllable authorization levels.

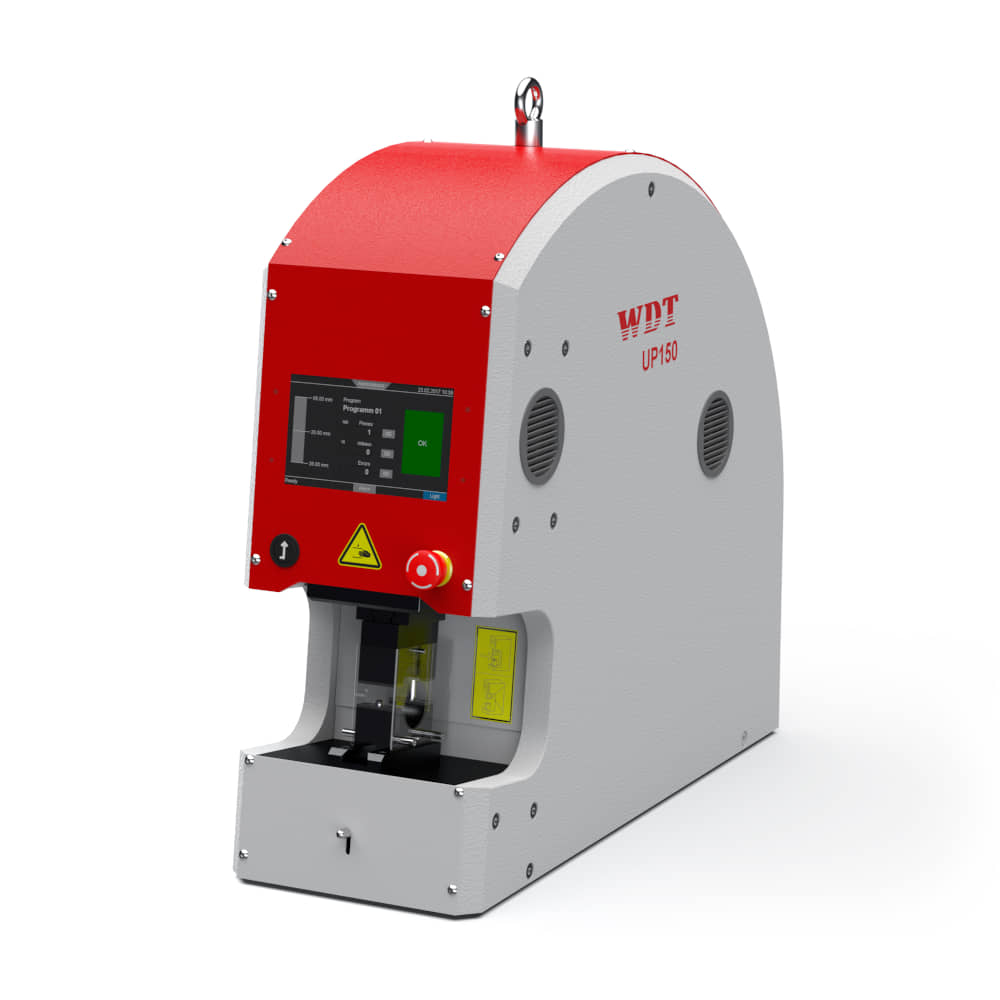

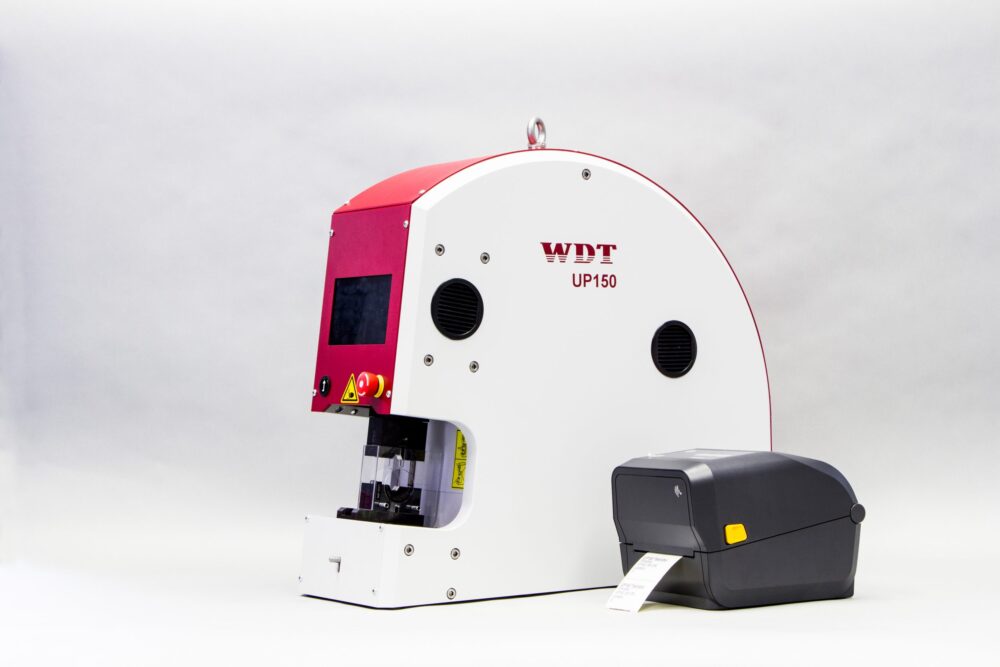

With a crimping force of 150 kN, our UP 150 is particularly suitable for processing large cross-sectional areas such as battery cables. The table-top machine is a true space-saving miracle, extremely quiet and will certainly optimise your production process.
Technical data
150 kN Crimp Force | Electrical connection 115 V, 60 Hz or
230 V, 50 Hz
High-quality
Linear crimping motion provides high process quality and is
an ideal choice for automotive and industrial applications
Application range
Uninsulated contacts up to 400 mm² | Insulated terminals up
to 400 mm² | Automotive connectors up to 150 mm²
Monitoring
Define tolerances, detect faulty parts and document results
with integrated crimp force monitoring – 0 percent fault
tolerance with optimum production costs

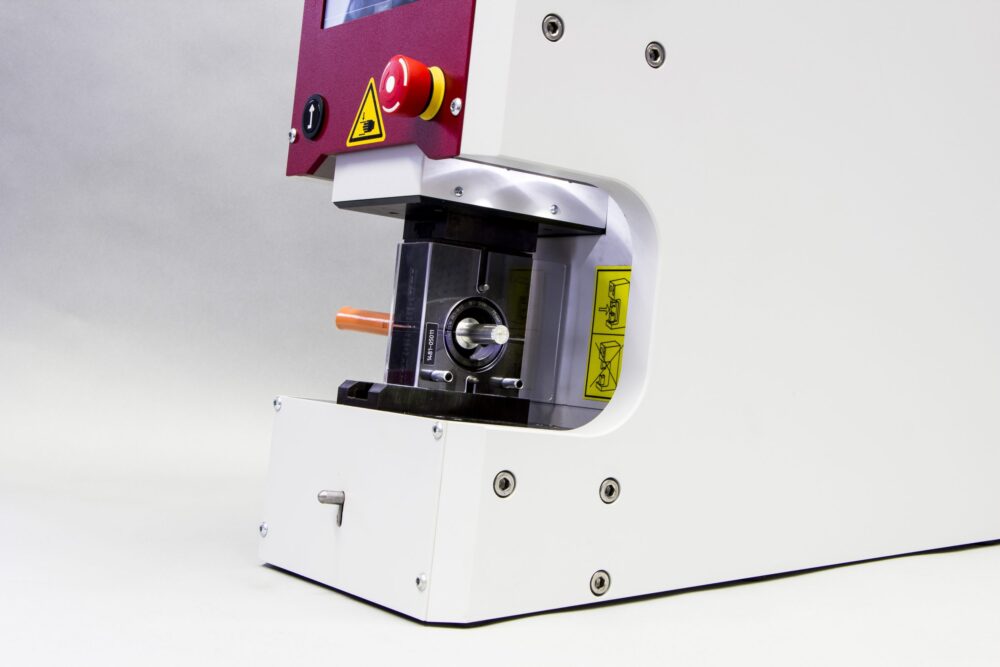

Flexible
React to different production orders with tool-free quickchange adapter system
Light
With 183 kg compared to other machines a lightweight,
compact design, hydraulic aggregate integrated

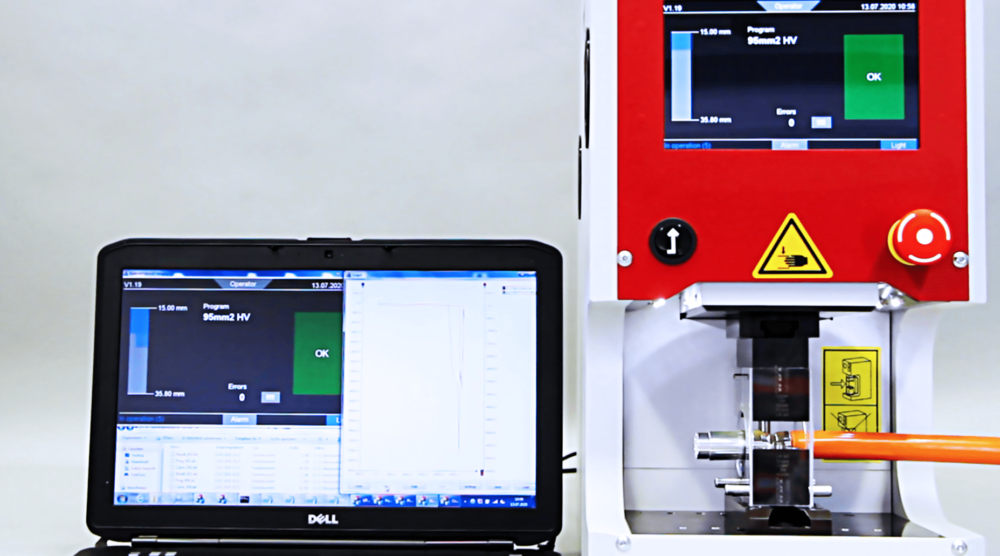

Informative
Touch display with piece and batch counter reliably records
production quantity, multilingual, with missapplication
display
Controllable
100 memory locations, optimum process time due to
programmable return stroke
Process-safe
Forced sequence control provides additional process quality
Programmable
3 user interfaces, password protected (Setup | Production |
Administrator)
Individual
Different adapters allow almost unlimited variability for
individual customer solutions (use of external dies possible)
Varied
A selection of standard processing solutions with and
without positioning system available from stock
User-friendly
Safety or two-hand operation optionally available
Well-known
“WDT” is established as a strong brand in the field of cable
processing for decades
Customized
Customized versions in design and function are available on
request
Reliable
Quality Made in Germany and CE compliant
